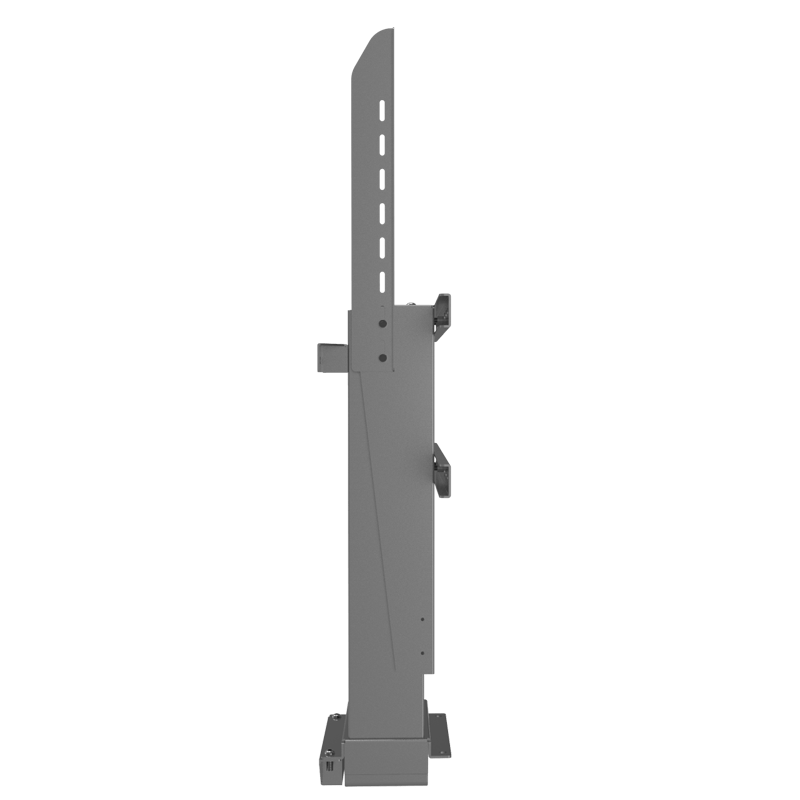

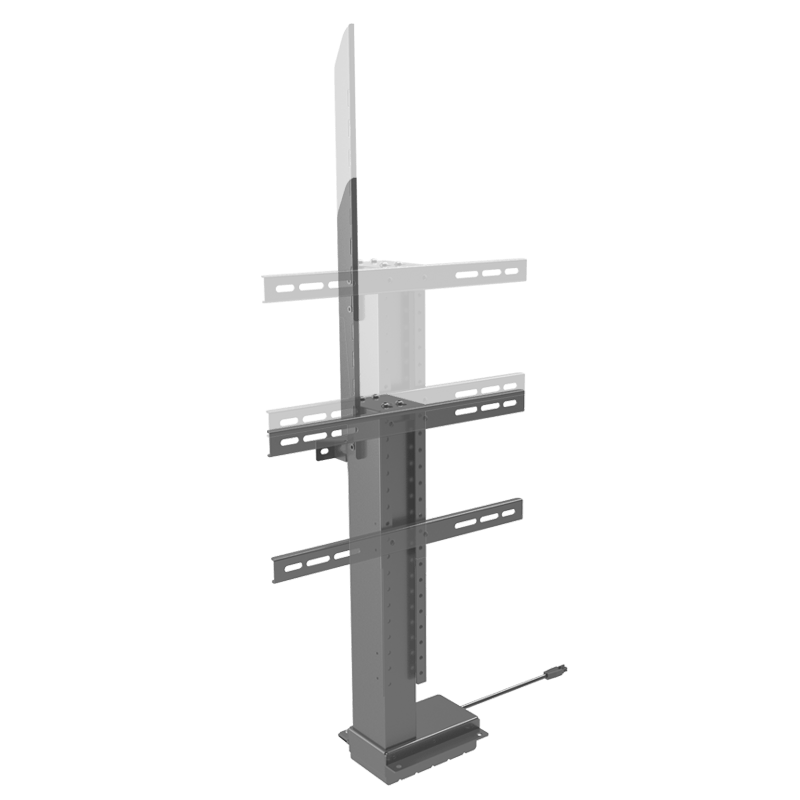

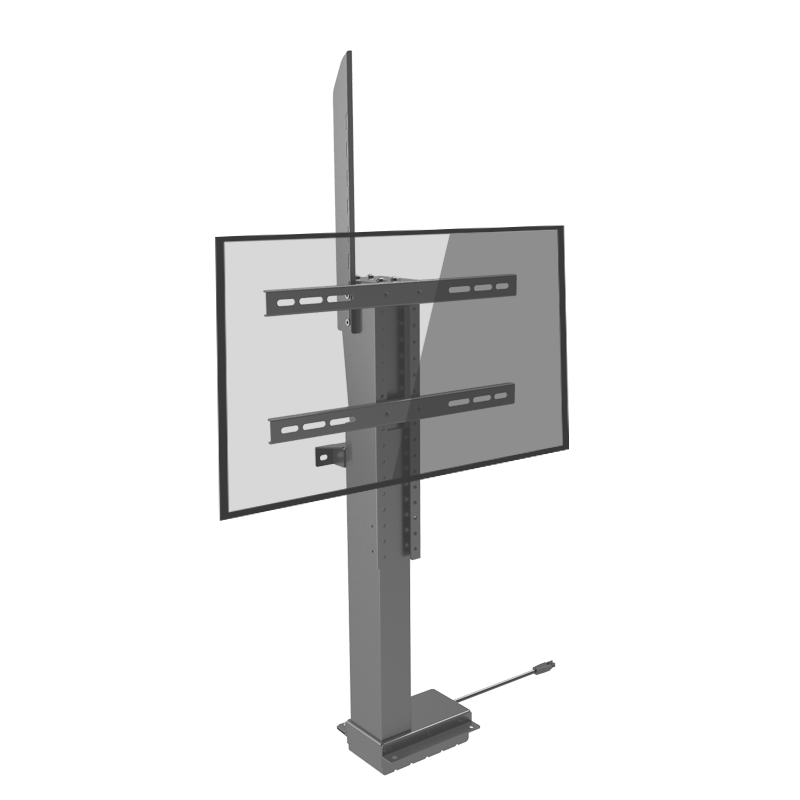

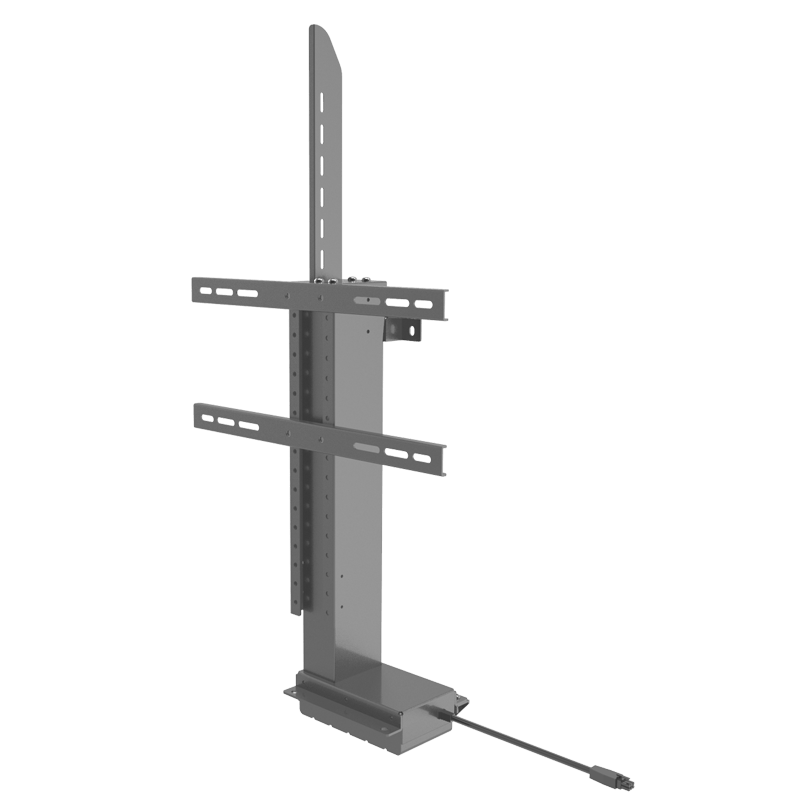

TV lift Ares 660 S

The TV lift DQ TV lift Ares 660 S is designed for medium and large flat screens. It is also suitable for heavy TV screens and monitors. The lifting height of the Mount is a measure of the respective maximum height of the TV, for example, to move it completely from a cabinet.

The flat screen should match to one of the specified VESA dimensions, or be used in conjunction with an adapter.

DQ TV lift Ares 660 S - Key Features:

• TV about: 32-48 Zoll (81-122 cm)
• Flexibility: Fix / Rigid
• Max. load capacity: 50 kg
• Distance: 58 / 124 cm
• Type: TV lifts
• Color: Black
• �� VESA: Max. 400x400 mm
• ⇵ Adjustable stroke: 66 cm
• Lifting speed: 30 mm/sec
• ✅ Lid lifter: Yes

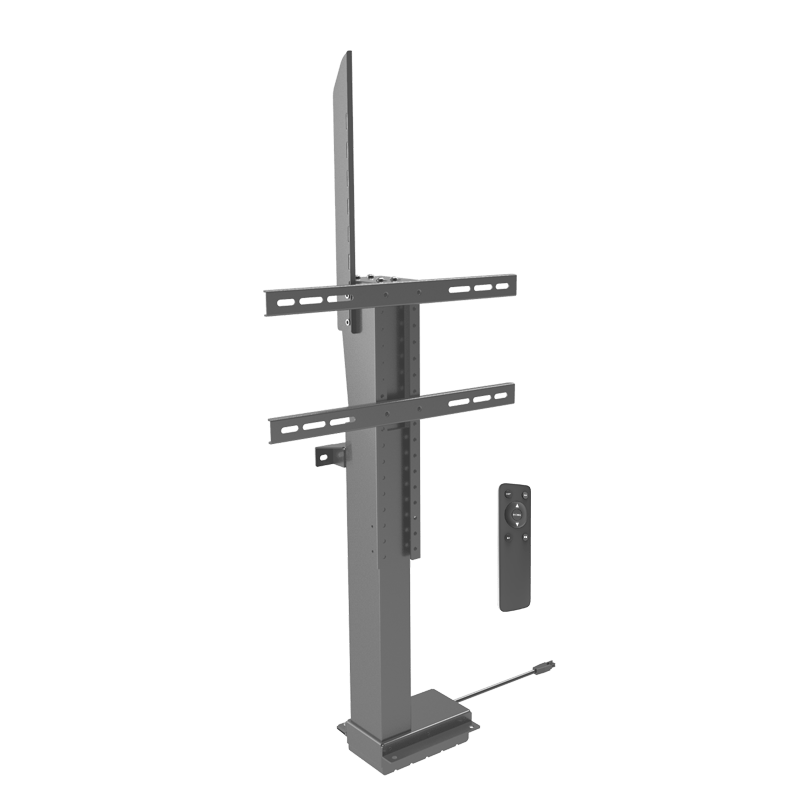

• ✅ Remote control: Yes
• ✅ Mounting accessories: Yes, standard mounting material
• ✅ Electric bracket: Yes

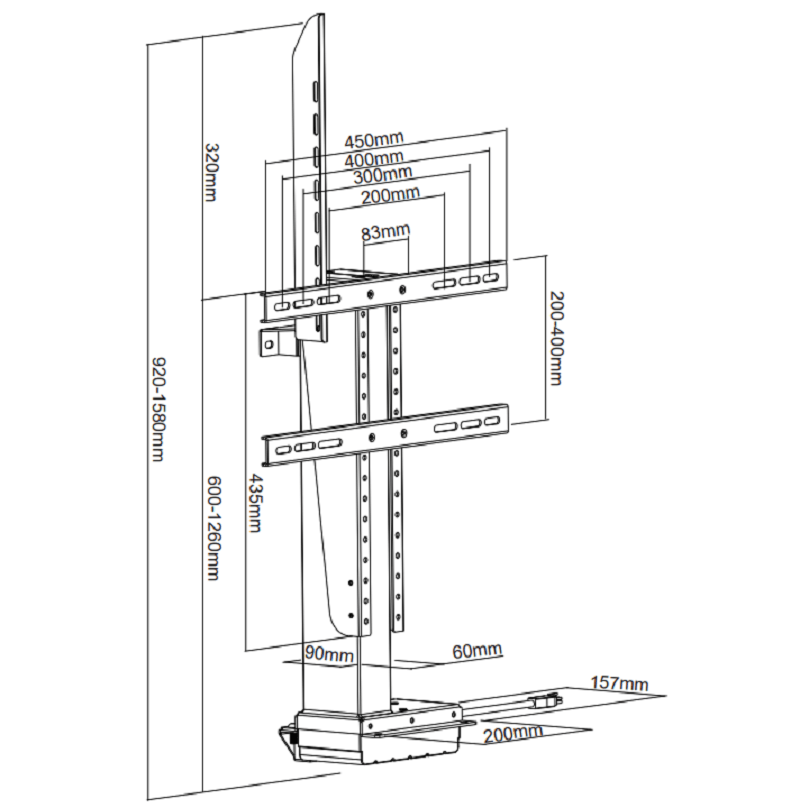

• Installation minimum dimensions: 58/66,3 x 46,2 x 11,7/20,5 cm
• Brand: DQ Wall-Support

Important selection criteria for a TV mount:

• VESA size: The VESA size is the horizontal and vertical distance between the attachment point on the back of your TV. You can find the VESA size in the manual or you can measure the distance between the screw holes yourself. If the wall mount have the same VESA size it is possible to assembly the TV.
• Weight: The weight of the TV (without the pedestal) is not allowed to be heavier than the carrying capacity of the support.

The given Inch sizes (TV size) are guidelines and not a feature of the product.

Universal mount suitable for TV sets of many manufacturers, such as Samsung, Sony, Panasonic, Phillips, Sharp, LG and other equipment manufacturers with the appropriate hole spacing or VESA standards.
